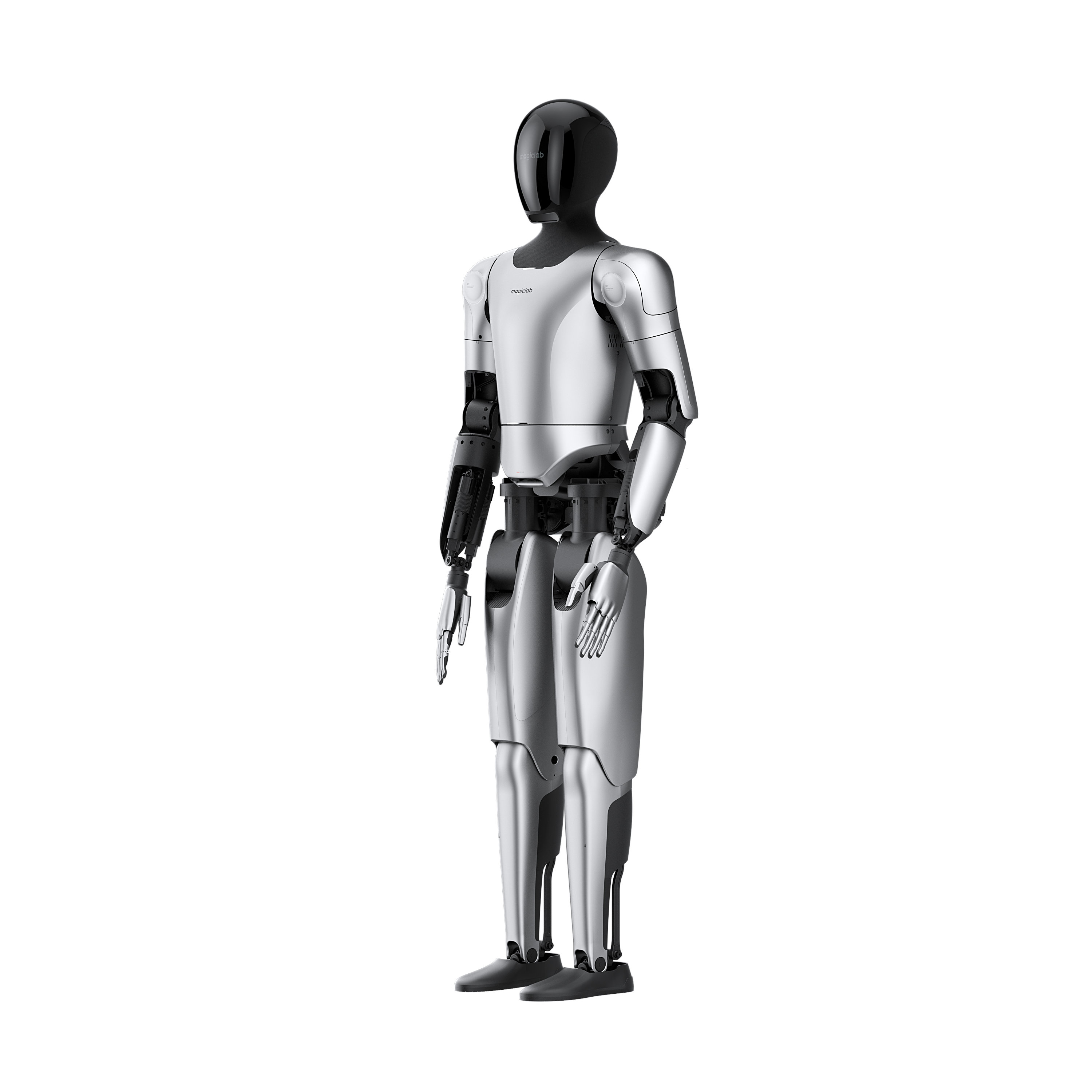

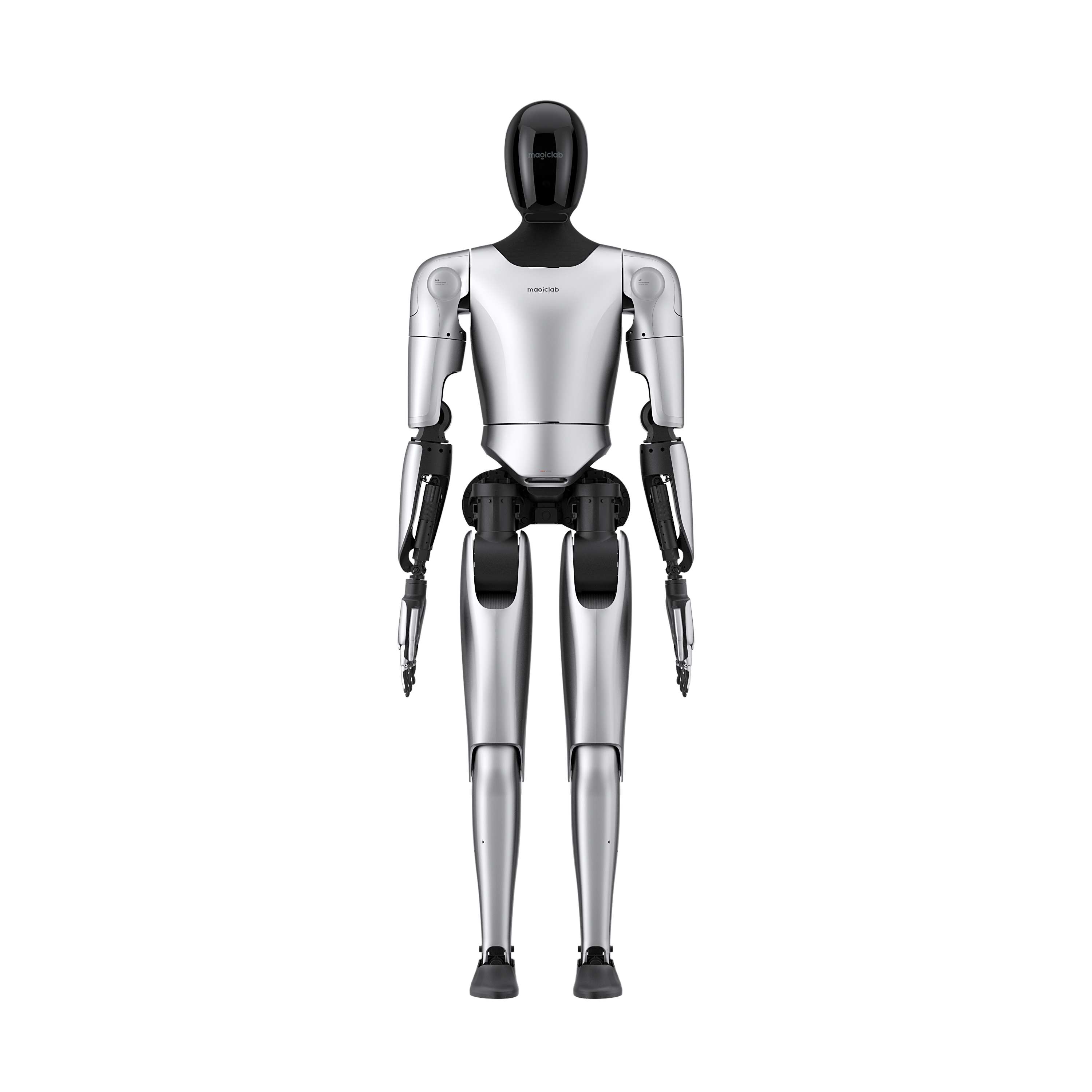

Magiclab G1 – General-Purpose Bipedal Humanoid Robot The Magiclab G1 general-purpose bipedal humanoid robot stands 174 cm tall and weighs approximately 67.5 kg, with 42 active degrees of freedom and a maximum joint torque of over 350 N·m. It is equipped with a 1.35 kWh rechargeable battery, featuring a movement speed of over 2 m/s and a maximum dual-arm load capacity of 20 kg. Additionally, it comes with the self-developed Magic-Hand – an 11-DOF tactile dexterous hand – and joint modules, enabling smooth and lifelike movements. Powered by Magic-Mind, its proprietary industry-specific AI model, the robot supports multi-robot collaboration. It integrates various sensors including 3D LiDAR and depth cameras, as well as communication modules such as 5G and Wi-Fi 6, making it compatible with multi-scenario operation needs. The control end supports flexible expansion, adapting to the intelligent upgrading of industries, commerce, households, and other fields. It is suitable for scenarios such as industrial production, commercial services, home companionship, R&D, and interactive demonstrations.
规格参数
| max. Payload | 20 kg |
|---|---|
| DOF | 42 |
| Weight | 67.5 kg |
| Height | 1,740 mm |
| Speed | 2 m/s |
| Operating time | 3 h |
| Max Joint torque | 350 nm |
